CCS1 to NACS PEDESTAL | 350/400/600A
Testé et répondant aux normes de sécurité les plus élevées
La livraison est à notre charge pour toutes les commandes au Canada et aux États-Unis
Un vrai service à la clientèle, nous n’utilisons pas de robots ni d’IA
Impossible de charger la disponibilité du ramassage
Descriptif

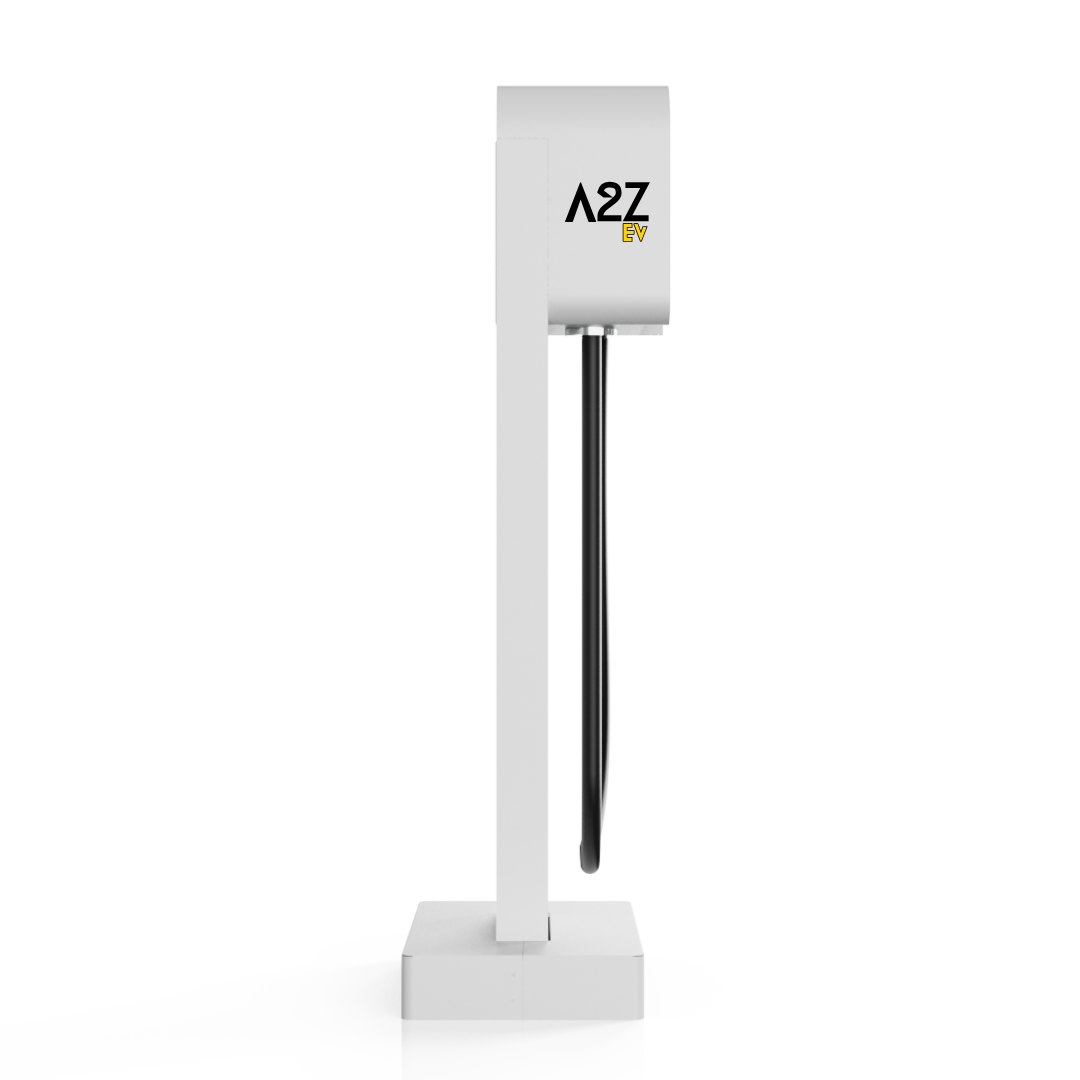

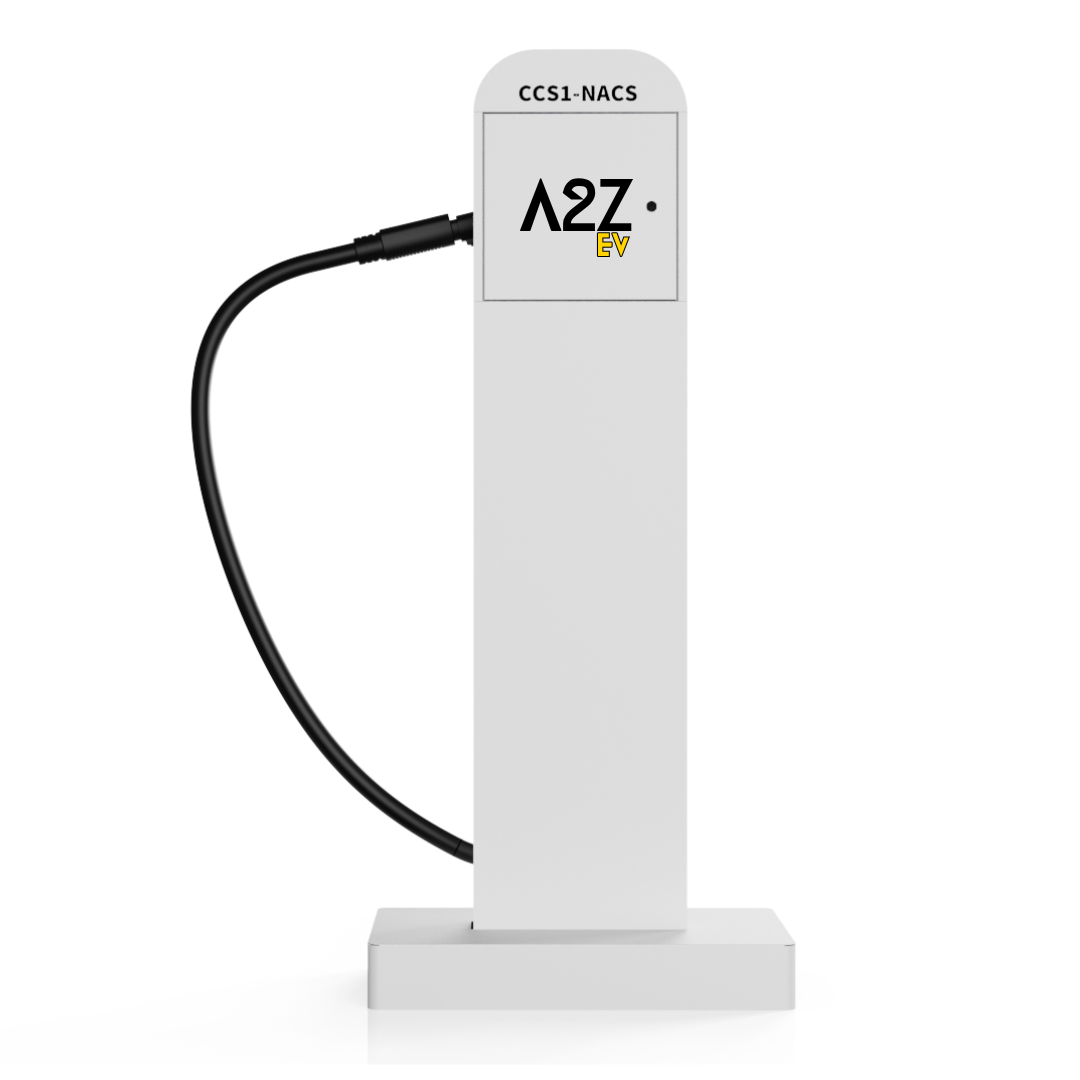

Introducing the A2Z EV CCS1 to NACS Pedestal – Our Latest Groundbreaking Innovation

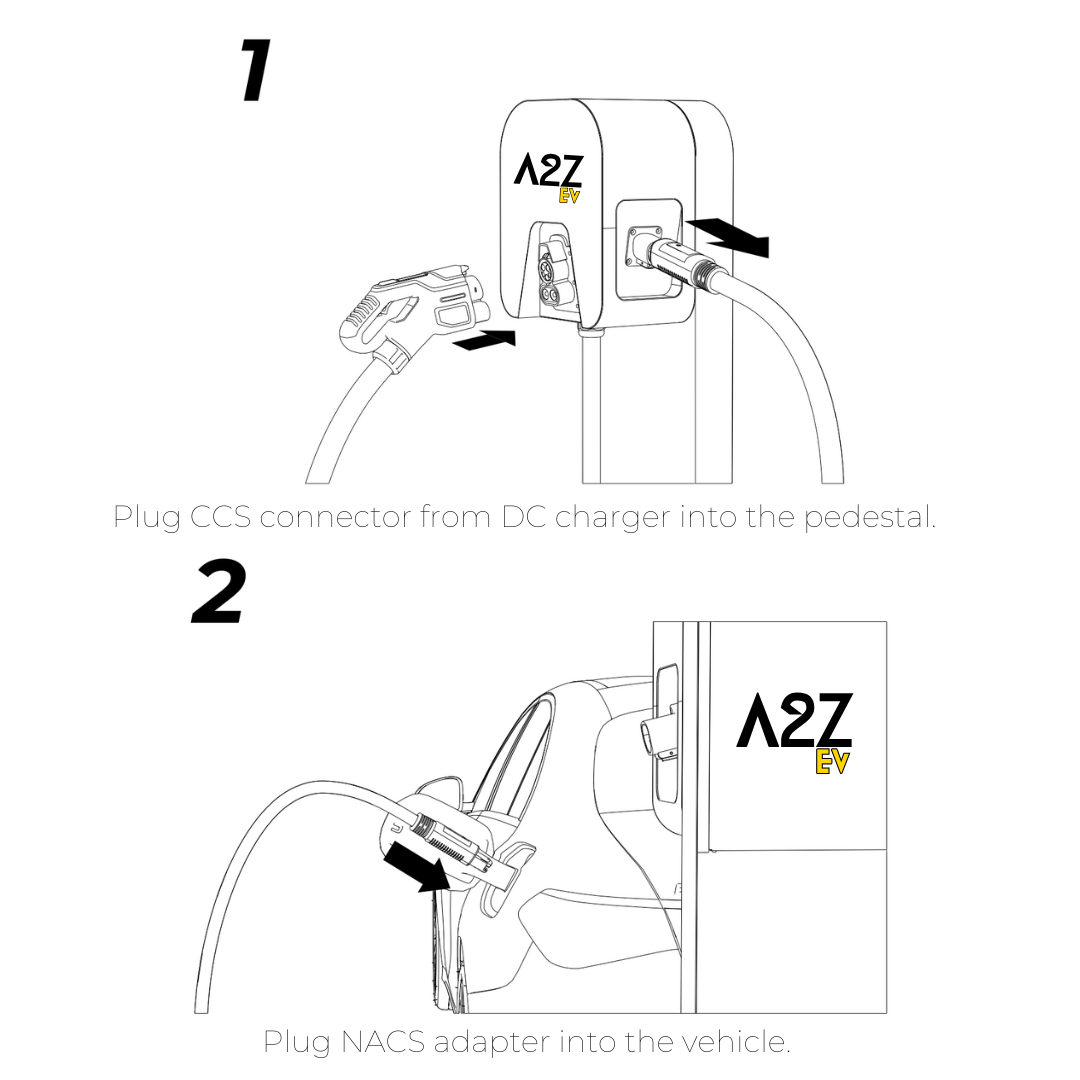

The A2Z EV CCS1 to NACS Pedestal is a revolutionary fixed and permanent adapter that requires no electrical connections. Simply mount it to a concrete base, and your customers can enjoy the freedom of using the connector that best suits their needs. Save thousands of dollars by eliminating the need to replace expensive DC cables or hire professionals for complex electrical work.
This cost-effective solution is fully customizable to match your brand, with options for design, color, and logo. The pedestal is ready to support your DC charging network and is available for almost immediate shipping.
Stay tuned for promotional media and videos coming soon!
Inquire now at : b2b@a2zevse.com
Main Parameters:
- Rated Voltage: 1000VDC
- Maximum Input Current: 350A, 400A & 600A (liquid cooled)
- IP55 Protection Rating
- Charging Cable Length: 1.8m (exposed)
-
Operating Environment:
- Altitude: < 2000m
- Temperature: -20°C to 60°C, derated operation above 50°C
- Dimensions: 660mm × 380.5mm × 1500mm (L × W × H)
- Number of Charging Guns: 1
- Operating Temperature: -25°C to 40°C
- Humidity: 5%–95% RH (non-condensing)
-
Dimensions:
- Total Height: 150cm
- Base dimensions: 66cm x 38cm
